Extend Dynamics 365 Dual Write Solution

Dual Write is a Power Platform based solution to synchronize Dynamics 365 Finance and Supply Chain with Dynamics 365 Customer Engagement in real time. I’ve uploaded a Youtube Video that shows Dual Write in Action. The default solution comes with a set of synchronization entities like Products, Customers, Vendors, Quotations, Sales Orders and Invoices. In a Dynamics 365 project you typically need to add additional information in both applications.

In this example a customer shall have a preferred carrier. The carrier (e.g. UPS, DHL) will be stored in a main table. The customer entity will have a reference to set the carrier. The corresponding account entity in Dynamics 365 Sales will have the same lookup field and preferred carrier settings will be synchronized between Finance and Sales.

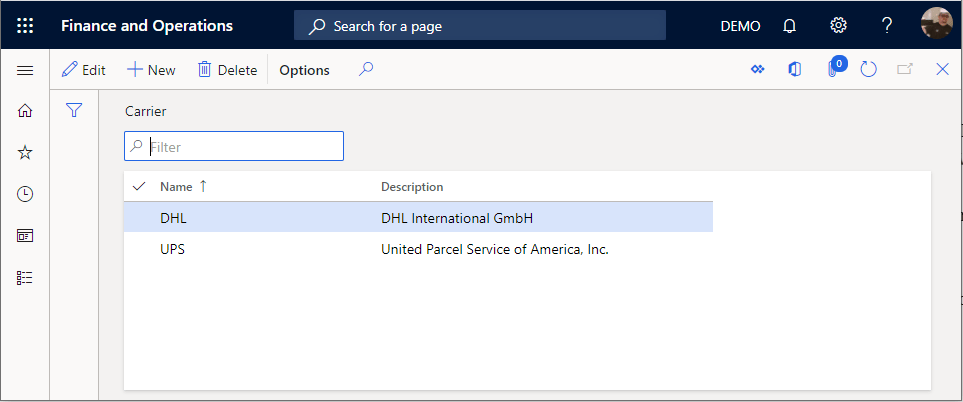

Carrier in Dynamics 365 Finance and Supply Chain Management
Carrier in Dynamics 365 Finance and Supply Chain Management

Extend Dynamics 365 Finance / SCM Data Model

For Dynamics 365 Finance / SCM create the necessary artifacts in Visual Studio:

  • A carrier table with a mandatory Name and Description field. Also create a primary index based on the Name.
  • An entity to make the carrier table accessible from external applications.
  • An extension of the CustTable with a Carrier field and a table reference from the CustTable to the Carrier table.
Dynamics 365 Finance / SCM Solution for customers preferred carrier
Dynamics 365 Finance / SCM Solution for customers preferred carrier

Save, compile and create a deployable package. Upload the package to your projects LCS asset library. After the package was validated, deploy the package to your target environment. After the package was deployed, go to Data Management Workspace > Framework Parameters > Entity settings and refresh the entity list.

Extend Dataverse (aka. Common Data Service) Entities

Navigate to https://make.powerapps.com and switch to your target environment. Go to Data > Tables and create a new table for the carrier. The table shall match the carrier table in Dynamics 365 FO. Make the Name field as mandatory primary field and add a second optional text field for the Description. Add a lookup field to the existing company table to match the DataAreaId that will come from Dynamics 365 Finance. Note that PowerApps will add a lot of other fields like owner, created, etc. as well.

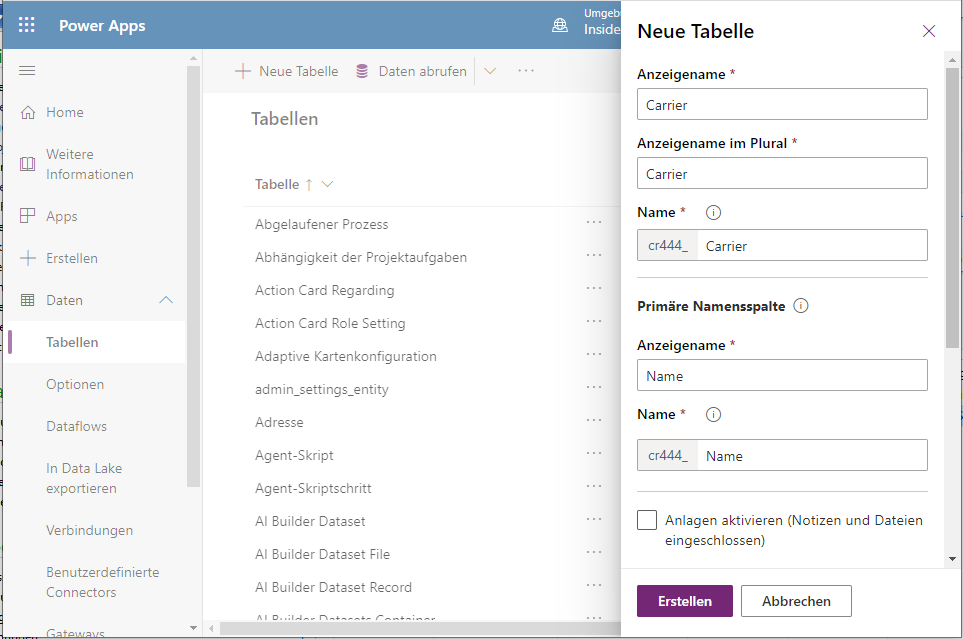

Create a carrier entity in the Dataverse (CDS)
Create a carrier entity in the Dataverse (CDS)

Find the account entity that was created by the Dual Write solution. Add an addition lookup field called Carrier that references the newly created carrier table.

Carrier lookup in the account entity
Carrier lookup in the account entity

Customize the accounts form in Dynamics 365 sales

In PowerApps > Data go the accounts table and switch to the forms tab. There go to the Main form that is used in Dynamics 365 Sales to work with accounts. Click on the Name of the form, this will open the forms designer.

Dynamics 365 Dataverse Account entity
Dynamics 365 Dataverse Account entity

In the PowerApps designer add the Carrier field to the form. Save the change and publish the customized form.

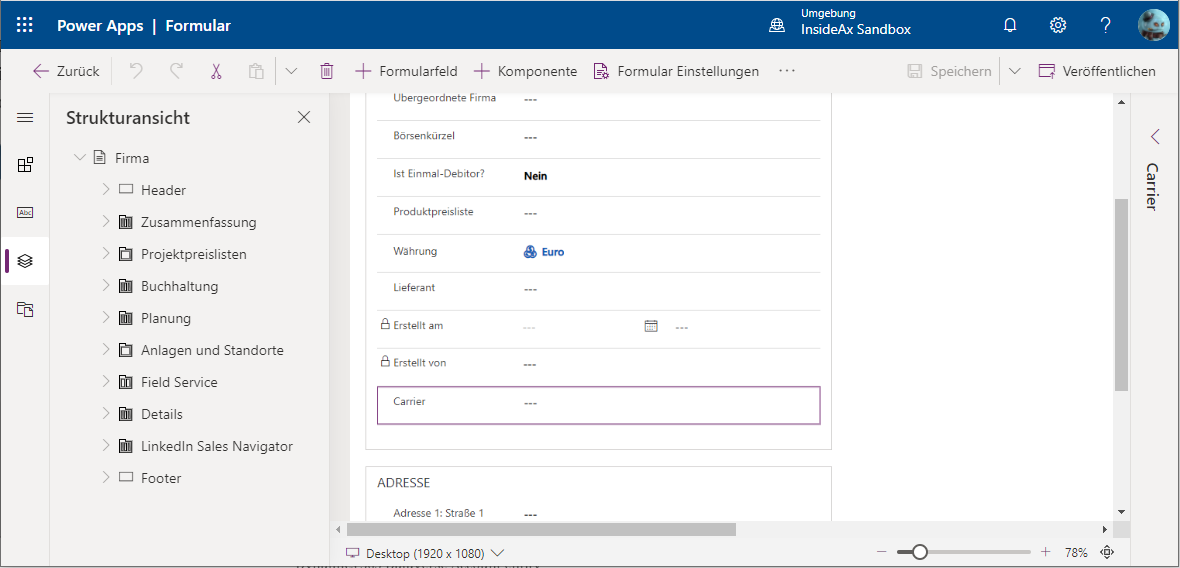

Add carrier to Dynamics 365 Sales Account Form
Add carrier to Dynamics 365 Sales Account Form

Map the Carrier Entity from Dynamics 365 Finance to the Carrier table in Sales

In Dynamics 365 Finance open the Data Management Workspace and go to Dual Write. Create a new table mapping. Map the Carrier entity from Dynamics 365 FO with the Carrier table form the Dataverse.

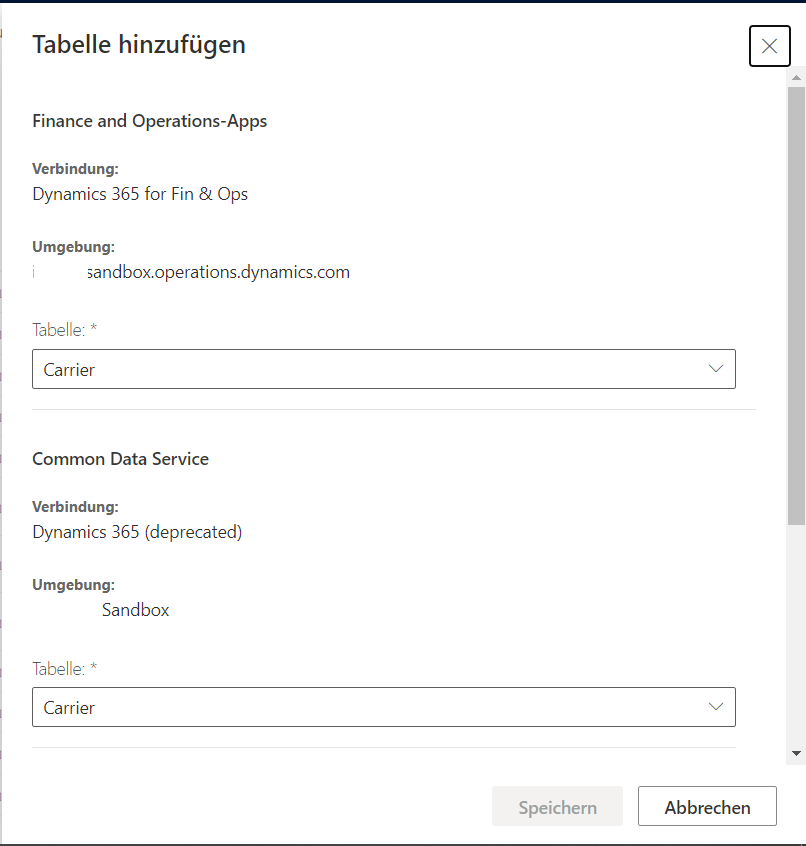

Create a new table mapping in Dynamics 365 Dual Write

Next map the Carrier Name fields and the Carrier Description fields. Save and start the initial synchronization.

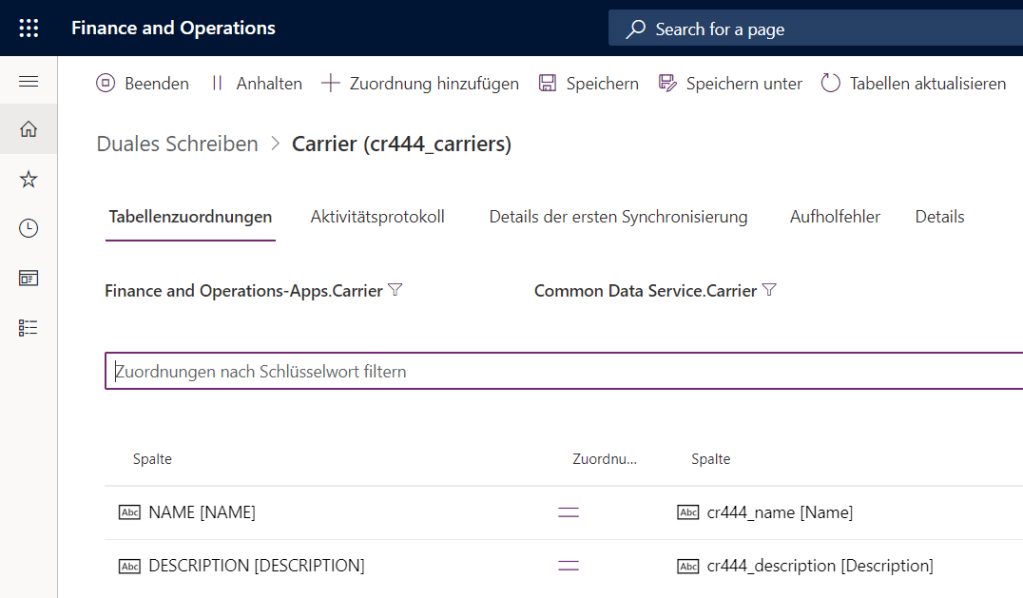

Map Dynamics 365 FO entity to Dynamics 365 Sales table

Check if the synchronization was successful. Open https://make.powerapps.com in a browser and switch to your target environment. At the left menu go to Data > Tables. Click on the Carrier table and switch to the Data tab. You should see the same carrier like in Dynamics 365 Finance.

Add the Carrier Lookup field to CustomverV3 mapping

Stop the synchronization of the CustomerV3 to account. Go to table mappings and refresh the tables. This will load the table schema from the Dataverse with the new carrier lookup field. Create a new mapping from the Carrier in Finance to the Carrier field in Dataverses entity. Save the mapping definition as a new version. Restart the synchronization and make sure there are no errors.

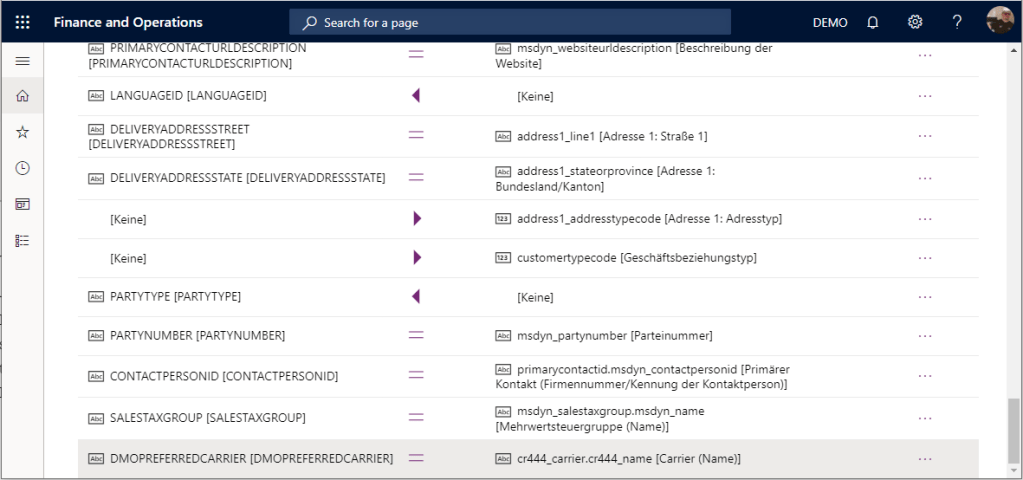

Mapping carrier fields in Dual Write
Mapping carrier fields in Dual Write

Now you should see and edit the Carrier in Dynamics 365 Finance as well in Dynamics 365 Sales. Changes made in any of the two products will be synchronized.

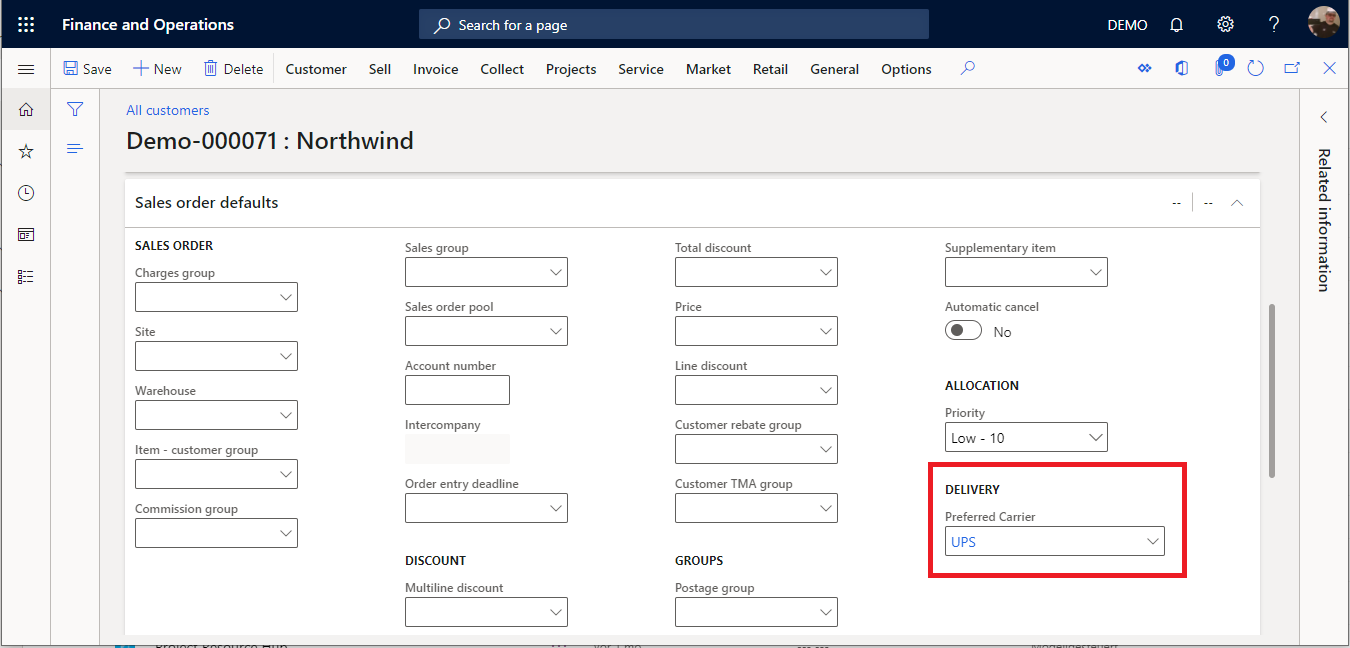

Preferred Carrier field in Dynamics 365 Finance and Supply Chain Management
Preferred Carrier field in Dynamics 365 Finance and Supply Chain Management
Mapped and synchronized Carrier field in Dynamics 365 Sales
Mapped and synchronized Carrier field in Dynamics 365 Sales

Limitations

Dual Write has some limitations regarding the number of lookup fields. If you come across an error during the synchronization you may need to remove some of the lookup fields from the Dual Write table mapping.
