Using Bing Maps app in Excel to visualize inventory on hand data

This video shows how to use Bing Maps app in Excel to visualize on-hand data

Receive large texts via AIF

One of our customer’s business partner transmits data as XML file. However, they did not make it to use a structured xml document service, but send a string that (in most cases) contains a valid xml document. Therefore we’ve setup an AIF service, using a class that takes one str parameter called _txt and stores it at a memo field.

public void storeText(str _text)
{
    AifBigData bigData;
    ;
    bigData.Text = _text;
    bigData.insert();
}

However, the business partner recently told us they get an error message while transmitting data to the AIF service telling them the transmitted data is too large. We were able to reproduce the issues by calling the service using a larger random-generated text.

class Program
{
    static void Main(string[] args)
    {
        var client = new BigData.BigDataServiceClient();
        client.ClientCredentials.Windows.ClientCredential = new
         System.Net.NetworkCredential("user","pass123","domain");

        // works fine
        client.storeText("Hello World");

        // fails 😦
        string txt = GenerateBigText();
        client.storeText(txt);
    }

    private static string GenerateBigText()
    {
        var random = new Random();
        var sb = new StringBuilder();
        for (int i = 0; i < 61440; i++)
        {
            char c =  (char)random.Next(65, 122);
            sb.Append(c);
        }

        return sb.ToString();
    }
}

The second call results in an exception

The formatter threw an exception while trying to deserialize the message: There was an error while trying to deserialize parameter http://insideax.at/bigdata:_text. The maximum string content length quota (8192) has been exceeded while reading XML data. This quota may be increased by changing the MaxStringContentLength property on the XmlDictionaryReaderQuotas object used when creating the XML reader.

However, the exception is well explained and contains a solution proposal to set the MaxStringContentLength

Go to Basic > AIF > Services > Button Configure


Select Binding > basicHTTPBinding > ReaderQuotas > MaxStringContentLenght and set e.g. 2147483647


Save and generate the .NET artifacts. Open windows explorer and navigate to the AIF virtual directory e.g. C:\Program Files\Microsoft Dynamics AX\50\AifWebServices . Select the web.config and open it with internet explorer. Make sure the MaxStringContentLength value is set


With this configuration the service call will work and a large text message is stored properly in Dynamics AX


MB6-820 Dynamics AX 2009 Installation & Configuration

I’ve passed the MB6-820 Dynamics Ax 2009 Installation & Configuration exam. Questions are fair and with some experience installing AX in different environments you have a good chance to pass the exam with a high score.

Dynamics Certifications


Windows and SQL Server Certifications


Enterprise Portal Custom Filter Error after a short time

Again I experienced a strange behavior within Dynamics AX 2009 Enterprise Portal. I’ve created a AxGridView using an AxDataSource connected to a DataSet in Dynamics AX. The DataSet holds a setFilter method to set values on some QueryBuildRanges. Moreover I’ve create a button in my AxUserControl Webpart that invokes the setFilter method with some values.

protected void SearchButton_Click(object sender, EventArgs e)
{
   string value1 = TextBox1.Text;
   string value2 = TextBox2.Text;
   AxDataSourceMyTable.GetDataSet().DataSetRun.AxaptaObjectAdapter.Call
    (“setFilter”,value1,value2);
}

public void setFilter(str _value1, str value2)
{;
   qbrSomeField.value(_value1);
   qbrAnotherField.value(_value2);
   MyTable_DS.executeQuery();
}

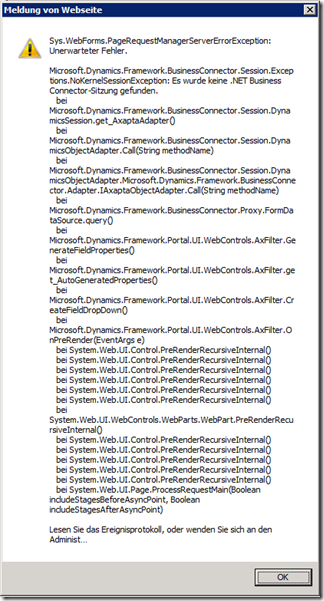

This implementation worked fine the first time using the webpart. However, after a very short time I got an error telling me that no Business Connector Session was found.

Microsoft.Dynamics.Framework.BusinessConnector.Session.Exceptions.NoKernelSessionException

First I thought of some kind of timeout and played with IIS settings. But Google found this discussion where it is explained that Dynamics AX deletes the QueryBuildRange objects after a very short time, and therefore the call fails. The solution is to use SysQuery::findOrCreateRange .

public void setFilter(str _value1, str value2)
{
   QueryBuildDataSource qbds;
   ;
   qbds = MyTable_DS.query().dataSourceTable(tableNum(MyTable))
   SysQuery::findOrCreateRange(qbds,fieldNum(MyTable,Field1)).value(_value1);
   SysQuery::findOrCreateRange(qbds,fieldNum(MyTable,Field2)).value(_value2);
   MyTable_DS.executeQuery();
}
